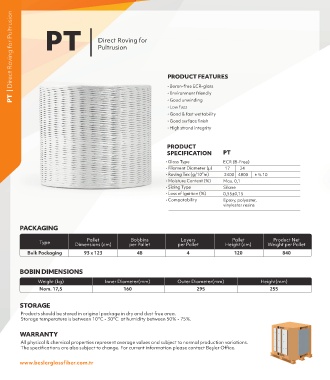

PT | Direct Roving for Pultrusion

PT | Direct Roving for LFT | Direct Roving for

Long Fiber Thermoplastic
Pultrusion
Applications

PRODUCT FEATURES PRODUCT FEATURES

. Boron-free ECR-glass . Boron-free ECR-glass
. Environment friendly . Environment friendly
. Good unwinding . Good unwinding LFT | Direct Roving for Long Fiber Thermoplastic Applications
. Low fuzz . Low fuzz
. Good & fast wettability . Good & fast wettability
. Good surface finish . Excellent tex distribution
. High strand integrity . High mechanical performance

PRODUCT PRODUCT
SPECIFICATION PT SPECIFICATION
. Glass Type ECR (B-Free) . Glass Type ECR (B-Free)
. Filament Diameter (µ) 17 24 . Filament Diameter (µ) Nom. 17
. Roving Tex (g/10³m) 2400 4800 ± % 10 . Roving Tex (g/10³m) 1200-2400 ± % 5
. Moisture Content (%) Max. 0,1 . Moisture Content (%) Max. 0,1
. Sizing Type Silane . Sizing Type Silane
. Loss of Ignition (%) 0,55±0,15 . Loss of Ignition (%) 0,7±0,15
. Compatability Epoxy, polyester, . Compatability Polypropylene,
vinylester resins Polyethylene

PACKAGING PACKAGING

Pallet Bobbins Layers Pallet Product Net Pallet Bobbins Layers Pallet Product Net
Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet
Bulk Packaging 93 x 123 48 4 120 840 Bulk Packaging 96 x 128 48 4 125 864

BOBIN DIMENSIONS BOBIN DIMENSIONS

Weight (kg) Inner Diameter(mm) Outer Diameter(mm) Height(mm) Weight (kg) Inner diameter(mm) Outer diameter(mm) Height(mm)
Nom. 17,5 160 295 255 Nom. 18 160 295 255

STORAGE STORAGE
Products should be stored in original package in dry and dust free area. Products should be stored in original package in dry and dust free area.
Storage temperature is between 10°C - 30°C at humidity between 50% - 75%. Storage temperature is between 10°C - 30°C at humidity between 50% - 75%.

WARRANTY WARRANTY
All physical & chemical properties represent average values and subject to normal production variations. All physical & chemical properties represent average values and subject to normal production variations.
The specifications are also subject to change. For current information please contact Beşler Office. The specifications are also subject to change. For current information please contact Beşler Office.

www.beslerglassfiber.com.tr www.beslerglassfiber.com.tr
